Synchronous Generator Details:
- Type: NATKL
- Phase: 03
- From: DCB
- Output: 4167 kW
- Voltage: 11000 V
- Amps: 263
- Frequency: 50 Hz
- Power Factor: 0.8
- Year of Build: 2017-07
- Mass: 19,300 kgs
- Maker: NSDK

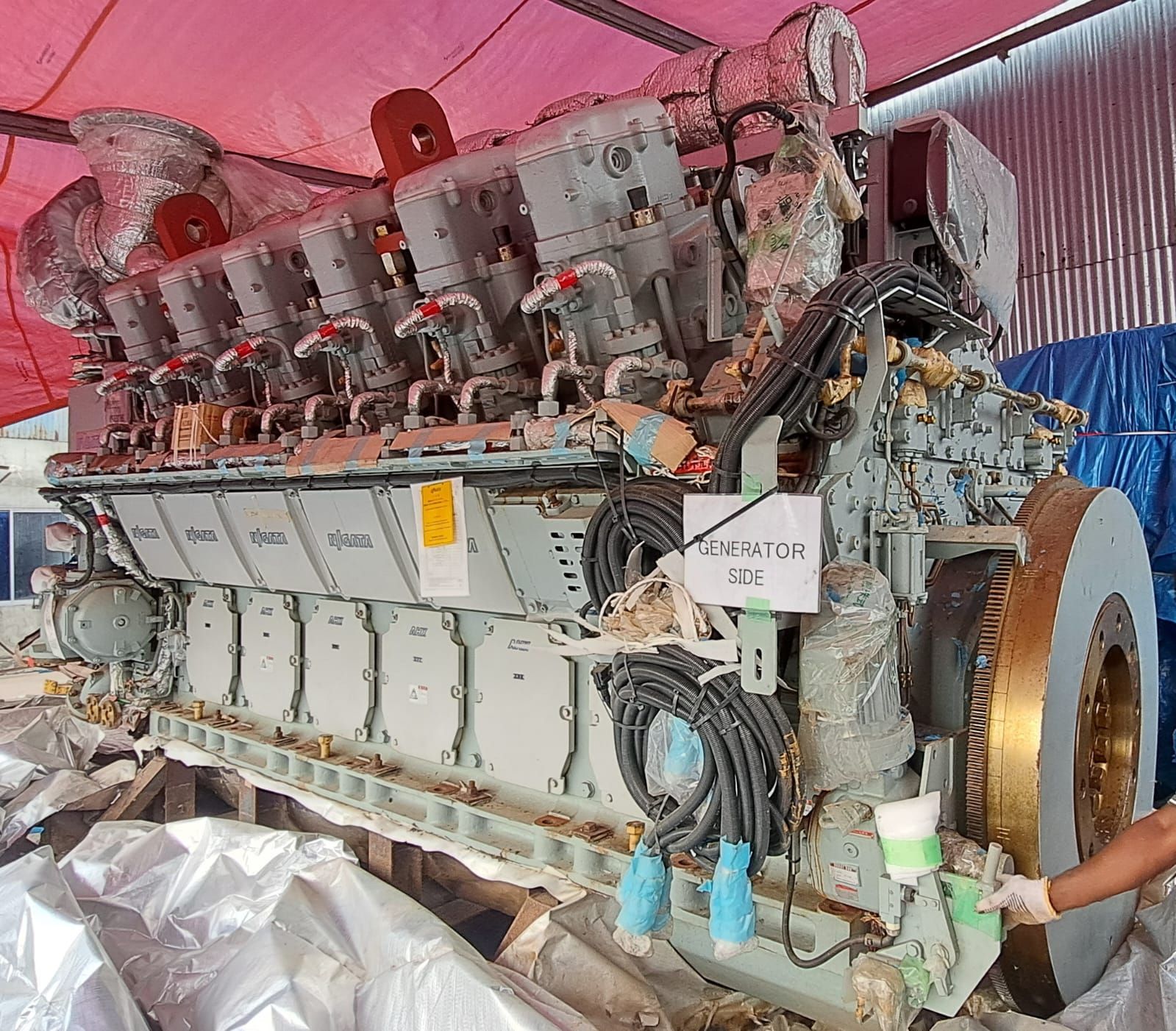

Diesel Generator Niigata 12V28AHX IS A 4 MW / 50 Hz HFO – Never Installed (2017)
Never used medium speed Niigata HFO / diesel fuel generator set with Nishibhiba made air cooled 11 kV synchronous alternator and auxiliaries. All equipment was manufactured in 2017 and has never been installed.
The engine can run with normal diesel fuel and 180 cSt heavy fuel oil. It is equipped with two intercooled turbo chargers, built-on 2027, lubrication fuel filter, and engine-driven cooling and lubrication pumps.
Auxiliaries include control panel, fuel booster unit for 180 CST HFO, and fuel oil filter. Delivery does not include synchronization module or 11 kV breaker switch. Engine and alternator will be bolted onto a concrete foundation.
Master Packing List:
- Main Engine
- Hanger for Main Engine
- A.C Generator
- Generator Control Panel
- Accessories for Both Set
Engine Details:
- Model: 12V28AHX
- Engine No: 57917
- Power: 4167 kW
- Speed: 750 min-1
- Dry Mass: 34,700 kgs
- Date: 2017-07
- Maker: Niigata Power System Co / Ltd
